1.3" 1.33 Inch TFT LCD Display 240x240 Pixels SPI Serial Peripheral Interface Driver

  • 1
  • 2

Brand Name : SAEF

Model Number : SFTM130JY-7153AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Price is negotiable based on order lot quantity

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-4 weeks

Packaging Details : Standard Exportation Package

Product : 1.3 Inch TFT LCD

Resolution : 240*240 Dots Resolution

Interface : SPI Serial interface

Outline Dim. : 27.5(L)x39(W)x11.3(T) (mm)

Optics : IPS, All Viewing Angles

Active Area : 23.4(L)x23.4(W) (mm)

Driving method : 1/240 Duty cycle

Operating Temp : -20°C to +70°C ( Customizable )

Storage Temp. : -30°C to +80°C

Driver IC : ST7789 or Equivalent

Pin number : 7 pins optional

Compliance : REACH & RoHS Compliant

Contact Now

Product Quick Review

  • Model No.SFTM130JY-7152AN
  • Type : 1.3" TFT LCD (1.33")
  • Structure : COG+PCB
  • 240x240 dots
  • IC:ST7789V
  • 2.5V ~ 3.3V Power supply
  • Interface: SPI Serial Interface
  • Display Color: Full Color 65K


SAEFDISPALY TFT LCD display module SFTM130JY-7152AN is connected with other board via a serial peripheral interface. It is designed with one socket for sd card which makes it very convenient. The display model is a-TFT with a display size of 1.33 inch with the high quality driving IC chip ST7789V, the module works more stable. The TFT LCD screen is graphical 240xRGBx240 dot . The LCD effective area is 23.4(L)x23.4(W) mm and the size of each pixel is 0.0975x0.0.0975 mm.
The lcd display screen is ideal for clear presentation of texts, graphics and images, with a small 1.3 inch sized screen and integrated SD card reader.


Product Features

Product:1.3 Inch TFT LCD
Resolution:240*240 Dots Resolution
Interface:SPI Serial Interface
Optics:IPS, All Viewing Angles
Driving Method:1/240 Duty Cycle
Outline Dim.:27.5(L)x39(W)x11.3(T) (mm)
Active Area:23.4(L)x23.4(W) (mm)
Operating Temp:-20°C To +70°C
Storage Temp.:-30°C To +80°C
Pin Number:7 Pins
Driver IC:ST7789 Or Equivalent
Compliance:REACH & RoHS Compliant




1.3 inch TFT LCD Display with 7-Pin SPI PCB Product Drawing
1.3" 1.33 Inch TFT LCD Display 240x240 Pixels SPI Serial Peripheral Interface Driver


Schematic Diagram

1.3" 1.33 Inch TFT LCD Display 240x240 Pixels SPI Serial Peripheral Interface Driver

Interface Pin Function

NO.PIN NAMEDescription
1GNDThis pin connected to Ground
2VCCPower Supply 2.8V Voltage
3SCLThis is Synchronous clock pin
4SDASerial Data Input
5RESLCM Reset input signal
6DCCommand and data pin
7BLKBacklight control pin


Absolute Maximum Ratings

1.3" 1.33 Inch TFT LCD Display 240x240 Pixels SPI Serial Peripheral Interface Driver

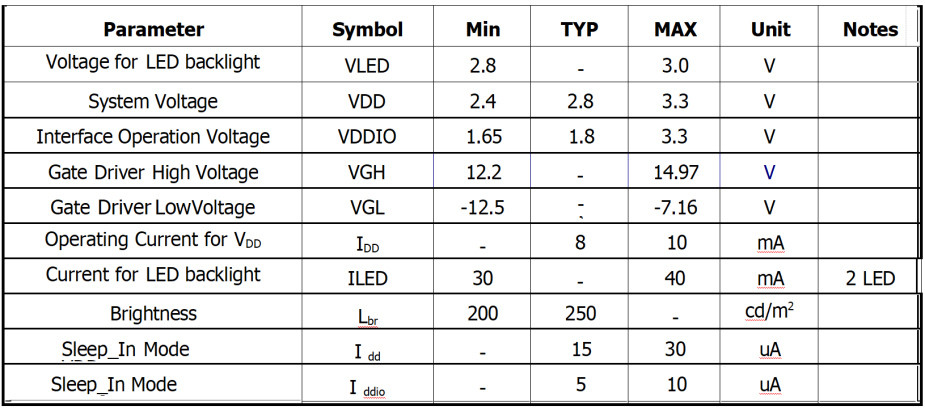

Operating Conditions

1.3" 1.33 Inch TFT LCD Display 240x240 Pixels SPI Serial Peripheral Interface Driver

AC Characteristics

1.3" 1.33 Inch TFT LCD Display 240x240 Pixels SPI Serial Peripheral Interface Driver

1.3 inch TFT LCD Display with 7-Pin SPI PCB Product Image

1.3" 1.33 Inch TFT LCD Display 240x240 Pixels SPI Serial Peripheral Interface Driver1.3" 1.33 Inch TFT LCD Display 240x240 Pixels SPI Serial Peripheral Interface Driver
