1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino

Brand Name : SAEF

Model Number : SFTM130JY-7181AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : USD1.7 - USD2.0, Negotiable based on order lot quantity

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Product : 1.3 inch TFT+PCB

PCB : 7-header pin PCB

Resolution : 240x240 dots

Cover Glass : Customizable

Viewing Direction : IPS Free Viewing angle

Interface : SPI interface

Pin number : 7 pins

Connection : Header Pin

Surface Luminance : 250 cd/m2(nits)

LED lifetime : 40,000 hours

Certificate : ISO9001:2015 / ISO1400:2015

Compliance : Rohs & Reach Compliant

Contact Now

1.3inch TFT LCD Module, 240x240 IPS 65K Full Color 3.3V with SPI Interface,

51 STM32 Ar duino Routines for DIY

SPI to serial chip is a multifunctional chip that can convert SPI interface signals into serial signals, which can be used to connect external devices and achieve communication with them. SPI to serial port chips have the advantages of high-speed transmission, low power consumption, and ease of use, and can be used in application scenarios such as computer hardware, household appliances, and industrial control.

This 1.3-inch TFT LCD display module is a 7-pin display screen with SPI Serial connector. This TFT display provides a semiconductor switch for each pixel, which is directly controlled by pulses. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also enables precise control. The display point size is 240 * 240, and it has two display modes: horizontal display and vertical display. The display direction can be adjusted. The working voltage of this module is 3.3V; The IC driver is ST7789 with a display area size of 23.4 * 23.4mm; TFT module size: 27.5 * 39mm.

Features

Item

Contents
Part number SFTM130JY-7181AN
LCD Size 1.3 inch(Diagonal)
Display Mode Normally black
Resolution 240(H)RGB x 240(V)
Dot pitch 0.0975 (H) x 0.0975(V) mm
Active area 23.4(H) x 23.4 (V) mm
Module size 27.5(H) x 39.0(V) x 11.3(D) mm
Color arrangement RGB Vertical stripe
Interface SPI
Drive IC ST7789
Luminance 250 (TYP) cd/m2
Viewing Direction All View, IPS
Backlight 2 White LED
Operating Temp. -20℃~ + 70℃
Storage Temp. -30℃~+ 80℃
Weight TBD

Outline Drawing

1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino

Pin Definition

No. Name I/O Description
1 VCC P Power Supply for the chip, DC 3.3-5V
2 GND P Ground
3 SCL I Serial Clock pin (SPI)
4 SDA I/O Serial Data pin (SPI)
5 RES# I Reset signal input. Active Low.
6 DC I Data /Command control pin,SPI Choice/ Command Choice
7 BLK I Backlight control, default floating, low level off

Backlight Characteristics

Item Symbol Min Typ Max Unit
Forward Voltage Vf 3.0 3.2 3.4 V
Forward Current If

--

 20

--

 mA
Operating Life Time -- -- 40000

--

 Hrs

Optical Characteristics

Item Symbol Measuring Conditions Min. Typ. Max. Unit
Response Time Tr+Tf θ = 0o φ = 0o 25 oC

-

 30 35

ms

Viewing Angle

θ

 φ = 0o 25 oC - 80 -

Deg
φ = 180o 25 oC - 80 -

θ

 φ = 90o 25 oC - 80 -
φ =270o 25 oC - 80 -
Contrast Ratio CR - 25 oC 800 - -
Color of CIE Coordinate White X 25 oC 0.300 0.302 0.304 -
Y 25 oC 0.323 0.325 0.327
Red X 25 oC 0.622 0.624 0.626
Y 25 oC 0.327 0.329 0.331

Green

 X 25 oC 0.286 0.288 0.290
Y 25 oC 0.520 0.522 0.524

Blue

 X 25 oC 0.134 0.136 0.138
Y 25 oC 0.135 0.137 0.139
Transmittance (with polarizer) 4. 18 4.65 %

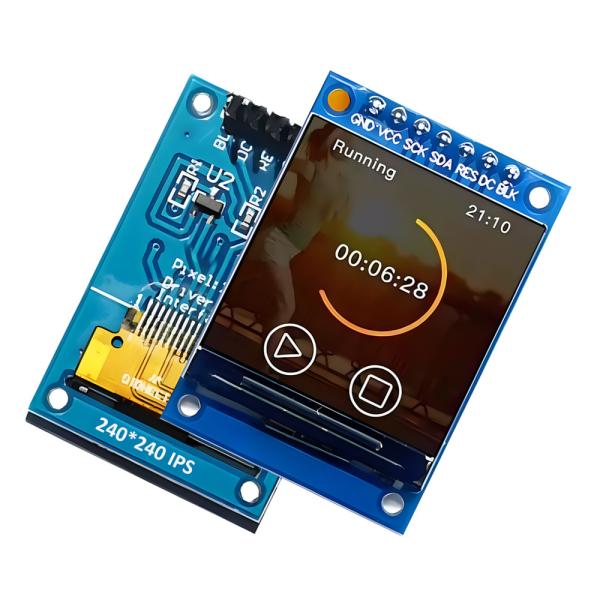

Product Image

1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino

Reliability Tesing

Test Item

Test Condition

 Inspection after test
High Temperature Operation 85℃ for 96 hours

After the Testing is completed, the tested LCD samples must be placed in a normal indoor temperature and humidity environment for 2-4 hours or more before functional and visual inspection. The samples are not allowed to have the following defects:
1. Poor functionality, such as missing display, abnormal display, severe light explosion, etc. 2. There are no polarizing film bubbles, OCA bubbles, or other defects in the appearance.

2. Each tested module can only be used for one of the testing projects
Low Temperature Operation -30℃ for 96 hours
High Temperature Storage 85℃ for 96 hours
Low Temperature Storage -30℃ for 96 hours
High Temperature Operation Humidity Operation 60℃, 90%RH for 72 hours
Thermal Shock -10℃(30min) ~+25℃(5min)~ +60℃(30min) for 10 cycles
Vibration Test (No Operation)

Frequency: 10~55Hz Amplitude:1.0mm Sweep Time: 11min

Test Period: 6 Cycles for each direction of X, Y, Z
Static electricity test Touch ±4KV,air touch ±8KV

Facilities and Certifications

1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino
