2.4 Inch PCAP TFT LCD Display Sunlight Readable, 15 Pin SPI 2.4 Inch All Viewing Angle TFT LCD With CTP Product Introduction
SFTC240B-7105A-CT TFT LCD display is a 2.4 inch portrait mode with capacitive touch screen (CTP) TFT LCD module, Displaying QVGA resolution 240x320 pixels, this TFT LCD module is built-in with ILI9341V IC ( compitable with ST7789V IC). it supports SPI interface. supply voltage for analog (Vcc) range from 2.4V to 3.6V, typical value 3.3V. This module is having anti-glare surface panel and all viewing angles visible.
SFTC240B-7105A-CT TFT LCD display product uses a high-brightness backlight, with a high-brightness polarizer, the surface brightness can reach 1000 NITS, and the CTP surface is anti-glare, so that this product can be read in sunlight. This LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.
Features:
| Product: | 2.4 Inch TFT LCD Display |
| Resolution: | 240*320 |
| Viewing Direction: | IPS All Viewing Angles |
| Pin Number: | 15 Pins |
| Interface: | SPI |
| Active Area: | 36.72(W) * 48.96(H) MM |
| Outline Dimension: | 49.72(W) * 72.9(H) * 3.59 MM |
| Surface Luminance: | 1000 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Touch Screen: | Capacitive Touch Panel |
| Cover Glass Dimension: | Customizable |
| Connection: | Plug In |
| Driver IC: | ILI9341V |
| Compliance: | REACH & RoHS Compliant |
2.4 Inch PCAP TFT LCD Display Sunlight Readable, 15 Pin SPI 2.4 Inch All Viewing Angle TFT LCD With CTP Product Drawing
Pin Definition:
1 GND
2 RS
3 CS
4 SCL
5 DATA
6 RESET
7 VDD
8 VSS
9 BL-A
10 BL-K
11 TP-VCC-
12 TP-RST
13 TP-INT
14 TP-SCL
15 TP-SDA

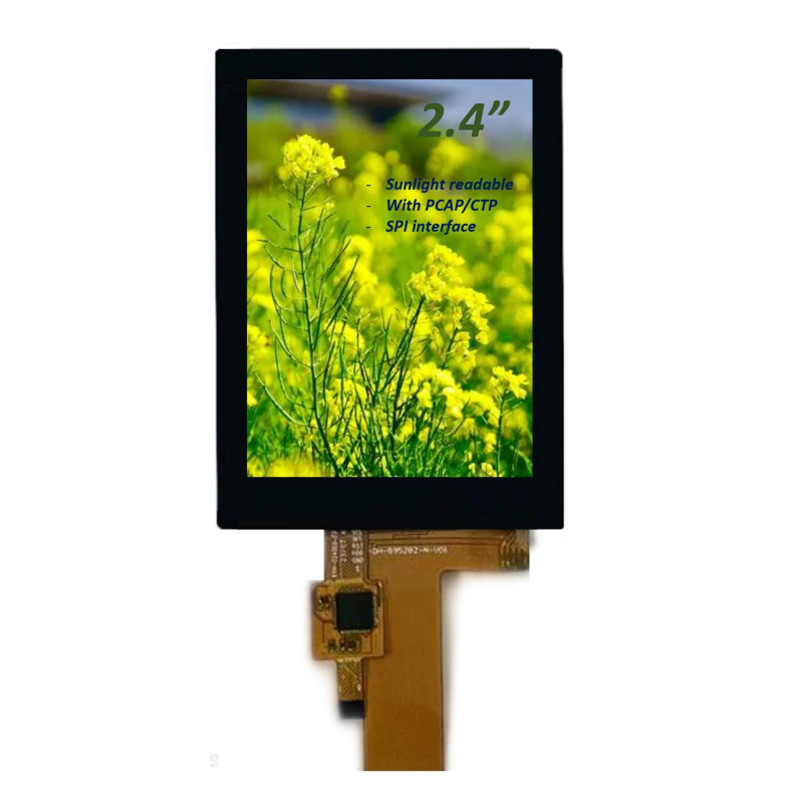

2.4 Inch PCAP TFT LCD Display Sunlight Readable, 15 Pin SPI 2.4 Inch All Viewing Angle TFT LCD With CTP Product Images
Factory Facilities and Certifications
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF
technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
