3.5 inch TFT touch LCD HVGA 320x480 and MCU interface PCAP TFT touch LCD
Product Quick Details:
1. LCD Size: 3.5” inch TFT
2. Resolution: 320x480 HVGA
3. Viewing Angle: 12 O’clock
4. Outline Dimension: 54.48x84.71x 2.2 mm
5. LCD Driver IC: ILI9488
6. LCD Interface Type: 3SPI+RGB16 Bit
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Projected Capacitive Touch Screen
9. CTP Structure: G+F+F
10. CTP Driver IC: GSL915
Product Features:
1. SF-TC350H-8826A-CT2 is TFT LCD module is a 3.5 inch diagonal size, 320xRGBx480, full color TFT LCD display with Projected Capacitive Touch Screen(PCAP).
2. This module supports 3SPI+RGB16 Bit Interface. SF-TC350H-8826A-CT2 model is having module dimension of 54.48x84.71 mm and Active area size of 48.96 x 73.44 mm;
3. SF-TC350H-8826A-CT2 is integrated with ILI9488 controller on module, and its logic supply voltage ranges from 2.6V to 3.3V.
4. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
5. SF-TC350H-8826A-CT2 is portrait mode LCD module, with 300 cd/m2 luminance. If you would like to use it as landscape mode or increase the luminance, please contact with us for more technical support.
6. SF-TC350H-8826A-CT2 PCAP cover glass can be customized. FPC can be customized too.
Application
This 3.5" TFT LCD Module works well for GPS device, POS terminal, cash reader, scanner, home automation, conference phone, analyzers, home appliance, home automation, security system, etc.
Quality assurance
1.For every piece, we have 3 times 100% test to ensure good quality.
2. The QA manager has been in the LCD industry for more than 14 years. The key manufacturing and QA operators have been in the LCD industry for more than 7-8 years. Our team are all very professional and experienced in the LCD filed to ensure quality for customers.
3. All the defects can be returned and replaced.
4. All products are ROHS compliant.
Customer Service
1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.
5. Buyer can dispatch technician to our factory for free training before delivery.
6. We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. Then you can place us the order.
For designing or further discussion, it is better to contact us by email / phone for more clear and accurate LCD solution proposal for you. .
2. What kind of display we provide?
We have TFT color LCD display module, monochrome lcd module, OLED lcd module, lcd module with digital frame, Android Tablet, etc. We support both indoor and outdoor applications, industrial and commercial applications.
We also support standard solutions and customized design solutions.
We have off-shelf and design-in products to provide customer with one-stop solutions.
3. How about the warranty ?
We have 1 year warranty. All the defects can be returned and replaced.
4. What is your terms of delivery?
We accept EXW, FOB, FCA, etc. You can choose the one which is the most convenient or cost effective for you.
| Product: | 3.5 Inch TFT Touch LCD | Touch Screen: | Projected Capacitive Touch Screen |
| Resolution: | 320x480 HVGA | Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12 O'clock | Interface: | 3SPI+RGB16 Bit |
| Pin Number: | 45 PINS | Connection: | FPC Plugging Type (customizable) |
| Surface Luminance: | 300cd/m2 (nits) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
3.5 inch TFT screen Drawing

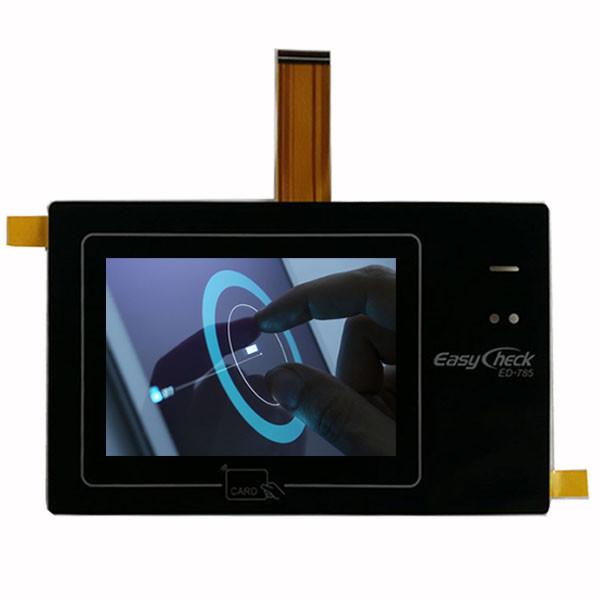

3.5 inch TFT screen Real Product Image
