4" Square Industrial TFT LCD (720x720) w/ PCAP Touch, -20°C~70°C Operation, RGB Interface | SFTO400XC-7013ACT

Product Categories
Shenzhen Saef Technology Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

4" Square Industrial TFT LCD (720x720) w/ PCAP Touch, -20°C~70°C Operation, RGB Interface | SFTO400XC-7013ACT

Brand Name : SAEF

Model Number : SFTO400XC-7013ACT

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 units (Negotiable for sample orders)

Price : $13USD - $15USD / unit (FOB Shenzhen, based on order quantity)

Payment Terms : T/T,PayPal,T/T 50% deposit,50% before shipment

Supply Ability : 3,000,000 units / month

Delivery Time : 1–5 weeks after order confirmation

Packaging Details : Export-ready carton box

Screen Size : 4.0-inch (Square)

Resolution : 720 × 720 pixels

Touch Type : Projected Capacitive (PCAP)

Interface : RGB 18-bit (40-pin ZIF)

Touch Controller : FT6336U (I²C, Multi-touch)

Surface Hardness : 300 cd/m2 (Customizable）

Contrast Ratio : 900:1 (Typ.)

Viewing Angle : 80°(U/D/L/R) (IPS Technology)

Operating Temp : -20°C to +70°C

Backlight : LED (12.8V/40mA, 4S2P)

ESD Protection : ±8kV (IEC 61000-4-2)

Warranty : 12 Months

Compliance : RoHS/REACH/Halogen-Free

Customization : CTP Structure, IC, Coatings (AG/AR/AF)

Contact Now

Engineered for Industrial Resilience & Precision

The SFTO400XC-7013ACT is a high-performance 4-inch square TFT LCD module designed for demanding industrial applications in harsh environments. Featuring a 720×720 resolution with 262K colors and an 18-bit RGB interface, it delivers exceptional clarity for HMIs, IoT control panels, and instrumentation.

Key Technical Differentiators

  1. Robust PCAP Touch Integration

    • Multi-touch support via FT6336U IC (I²C interface).

    • Customizable configurations: G+F (Glass/Film) or G+G (Glass/Glass) structures.

    • Optional industrial-grade touch ICs (-40°C to +85°C, ±15kV ESD).

  2. Extreme Environment Readiness

    • Validated for thermal cycling (-30°C to 80°C storage) and vibration resistance (10–55Hz, 1.5mm amplitude).

    • IP67-sealed variants available (gasket + potting).

    • Hydrophobic coatings (>110° contact angle) for wet/outdoor use.

  3. Optical Excellence

    • 900:1 contrast ratio with 80° omnidirectional viewing.

    • Anti-glare (AG) + anti-reflective (AR) coatings (optional).

    • ≥82% light transmission (upgradeable to 90%).

  4. Compliance-Driven Design

    • Full RoHS/REACH/PFAS compliance for EU/US markets.

    • Certifications: ISO 9001:2015, ISO 14001:2015, EN 55032/24 (EMC).

  5. Customization for Critical Applications

    • Thickness options: 0.95mm–6.0mm cover glass.

    • Industrial upgrades: Extended temp ICs, rain-rejection algorithms, EMI shielding.

    • Surface treatments: Ceramic inks (10+ year UV resistance), 2.5D/3D edges.

Target Applications

  • Factory Automation: Control panels, PLC interfaces.

  • Medical Devices: Diagnostic equipment, portable monitors.

  • Transportation: Fleet management systems, EV dashboards.

  • Smart Building: HVAC controls, security terminals.

Why Engineers Choose This Module

*"With 72.3×72.3mm active area and OCA-bonded lamination, this module eliminates optical distortion while surviving ±8kV ESD events. The 40-pin ZIF connector simplifies integration, and our I²C touch interface reduces host MCU load. Customizable for MIL-STD environments."*

General Specifications

Feature Specifications

Display Spec.

 LCD type 4.0 inch
Resolution (H*V) 720(RGB)×720
Technology Type a-Si TFT
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Normally Black
Viewing Direction ALL
Gray Scale Inversion Direction -

Mechanical

Characteristics

 Outline Dimensions (W x H x T) (mm) 84.00*84.00*3.2
Active Area(mm) 71.93*71.93
CTP View Area(mm) 72.30*72.30
With /Without Touch screen With Capacitive Touchscreen
Connector Type (for LCD) 0.5mm pitch 40pin ZIF
Backlight Type LED
Weight (g) TBD

Electrical

Characteristics

 Display Interface RGB 18bits
Touch Interface I2C
Number of color 262K
Display Driver IC NV3052CGRB
Touch Driver IC FT6336U


Mechanical Drawing

4" Square Industrial TFT LCD (720x720) w/ PCAP Touch, -20°C~70°C Operation, RGB Interface | SFTO400XC-7013ACT

CTP Specification

Category Parameter Specification

General

 Structure Cover Glass + ITO Sensor Film (G+F)
Outline dimension 84.0(H) x 84.0(V) x 0.95 (T) mm
Cover Lens Strengthening Chemically Strengthened
Cover Lens Surface Hardness ≥6H (Pencil Hardness)
Light Transmission Rate ≥82%
Operation Temperature -20℃ ~ +70℃, ≤90% RH
Storage Temperature -30℃ ~ +80℃, ≤90% RH

Electrical

 Interface I2C
Touch IC FT6336U
Power Supply Voltage (VDD) 2.8V ~ 3.3V
Host Resistance (SDA/SCL) Configurable on Main-board
Touch Point Multi-touch
Environmental Operating Conditions Customizable

Surface

Properties

 Surface Ink Customizable
Surface Treatment Clear type, Customizable
LCD-TP Lamination OCA Bonding
Compliance Material Standards RoHS, REACH & Halogen-Free Compliant

Interface Pin Description

1 LED A LED ANODE
2 LED K1 LED CATHODE
3 LED K2 LED CATHODE
4 GND Ground
5 VCI Power supply (+3.3V)
6 RESET Reset Signal ,Active Low
7 IM1 Not connection
8 IM0 Not connection
9 SDA Not connection
10 SCK Not connection
11 CS Not connection
12 PCLK RGB dot clock signal
13 DE RGB data enable signal
14 VSYNC RGB frame synchronizing signal
15 HSYNC RGB line synchronizing signal
16~33 DB0 ~DB17

RGB data signal (DB0: Blue LSB; DB5:Blue MSB;

DB6: GREEN LSB; DB11: GREEN MSB; DB12: RED LSB; DB17: RED MSB)
34 GND Ground
35 TP_INT Touch Interrupt
36 TP_SDA Touch IIC Data signal
37 TP_SCL Touch IIC Clock signal
38 TP_RESET Touch Reset Signal
39 TP_VCI Touch Power supply
40 GND Ground

Electrical Characteristics

Item Symbol Min Type Max Unit
Operating voltage VDD 2.5 3.3 3.6 V
Supply current IDD - 25.7 60 mA
Input voltage VIH 0.8VDD - VDD V
VIL 0 - 0.2VDD V

Input leakage

current

 IIL -1.0 - 1.0 μA

Backlight Characteristics

Item Symbol Min Typ Max Unit
Forward Current IF -- 40 50 mA
Forward Voltage VF - 12.8 - V
Connection mode -- 4S2P --
LED number / 8 pcs
Optical Characteristics
Item Symbol Condition Min Typ Max Unit

View Angles

 θT

CR≥10

 - 80 -

Degree
θB - 80 -
θL - 80 -
θR - 80 -
Contrast Ratio CR θ=0° 700 900

-

-
Response Time TON 25℃

-

 25 35

ms
TOFF
Uniformity U

-

 70 80

-

 %
NTSC

-

-

-

 68

-

 %
Luminance L

-

 300

-

 cd/m2

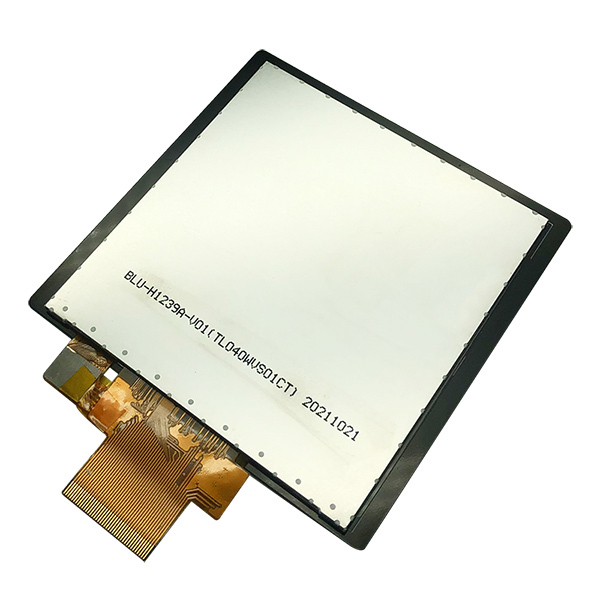

Product Image

4" Square Industrial TFT LCD (720x720) w/ PCAP Touch, -20°C~70°C Operation, RGB Interface | SFTO400XC-7013ACT4" Square Industrial TFT LCD (720x720) w/ PCAP Touch, -20°C~70°C Operation, RGB Interface | SFTO400XC-7013ACT

4" Square Industrial TFT LCD (720x720) w/ PCAP Touch, -20°C~70°C Operation, RGB Interface | SFTO400XC-7013ACT
